Choose your kit
Sorry, this product is no longer available, please contact us for a replacement.
Meraki Go WiFi Kit Back to Top
Indoor WiFi Access Point
- Prioritize WiFi bandwidth, set limits & block unwanted websites
- Create a custom splash page for guest WiFi in seconds
- View guest and business insights
- Cloud managed with the Meraki Go mobile app and web portal
- All updates and tech support included
- Covers 500 – 1000 square feet / 50 – 100 square meters
Kit Description
Reliable and secure WiFi for business/guests needs, fast and easy setup, enhanced features for small businesses, and visibility and control at your fingertips. Simple management from anywhere using the Meraki Go mobile app or web portal.
Specifications- Meraki Go Indoor WiFi Access Point- GR10
Radios
- 2.4 GHz 802.11b/g/n client access radio
- 5 GHz 802.11a/n/ac client access radio
- Supported frequency bands (country-specific restrictions apply):
- 2.412-2.484 GHz
- 5.150-5.250 GHz (UNII-1)
- 5.250-5.350 GHZ (UNII-2)
- 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
- 5.725 -5.825 GHz (UNII-3)
Antenna
- Integrated omni-directional antennas (5.6 dBi gain at 2.4 GHz, 5.3 dBi gain at 5 GHz)
Power
- Power over Ethernet: 37 - 57 V (802.3af compatible)
- Alternative 12 V DC input
- Power consumption: 11W max (802.3af)
- Power over Ethernet injector sold separately
Physical Dimensions
- 7.95″ x 4.8″ x 1″ (202 mm x 123 mm x 26 mm), not including deskmount feet or mount plate
LED Indicators
- 2 Ethernet status
- 1 power/booting/firmware upgrade status
In the Box
- GR10-HW: Meraki Go Indoor Access Point
- Wall mount and screw kit
- Quick start guide
- PSU and ethernet cable
- Note: Meraki Go subscription required
802.11ac and 802.11n Capabilities
- 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
- SU-MIMO and MU-MIMO support
- Maximal ratio combining (MRC) & Beamforming
- 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
- Up to 256 QAM on both 2.4 GHz and 5 GHz bands
- Packet aggregation
Interfaces
- 1x 10/100/1000 BASE-T Ethernet (RJ45)
- 1x DC power connector (5.5 mm x 2.5 mm, center positive)
Environment
- Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5 to 95% non-condensing
Mobility
- PMK and OKC for fast Layer 2 roaming
Compliance
- RoHS
- EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
Warranty
- 1 year hardware warranty

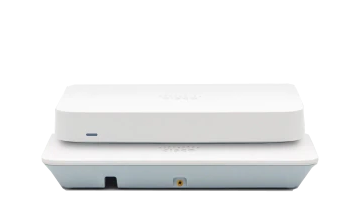

Meraki Go Network Kit Back to Top
Indoor WiFi Access Point + Router/Firewall
- Prioritize WiFi bandwidth, set limits & block unwanted websites
- Create a custom splash page for guest WiFi in seconds
- View guest and business insights
- Includes Firewall & Router combo for business-grade security
- Power over Ethernet (PoE) port & 3 additional LAN ports
- Cloud managed with the Meraki Go mobile app and web portal
- All updates and tech support included
- Covers 500 – 1000 square feet / 50 – 100 square meters
Kit Description
Reliable and secure WiFi for business/guests needs, fast and easy setup, and enhanced features for small businesses. The Small Network Kit includes the router/firewall that comes with up to 4 wired connections, automatic updates that keep your business secure, control over usage limits, and peace of mind.
Specifications-
Meraki Go Indoor WiFi Access Point - GR10
Radios
- 2.4 GHz 802.11b/g/n client access radio
- 5 GHz 802.11a/n/ac client access radio
- Supported frequency bands (country-specific restrictions apply):
- 2.412-2.484 GHz
- 5.150-5.250 GHz (UNII-1)
- 5.250-5.350 GHZ (UNII-2)
- 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
- 5.725 -5.825 GHz (UNII-3)
Antenna
- Integrated omni-directional antennas (5.6 dBi gain at 2.4 GHz, 5.3 dBi gain at 5 GHz)
Power
- Power over Ethernet: 37 - 57 V (802.3af compatible)
- Alternative 12 V DC input
- Power consumption: 11W max (802.3af)
- Power over Ethernet injector sold separately
Physical Dimensions
- 7.95″ x 4.8″ x 1″ (202 mm x 123 mm x 26 mm), not including deskmount feet or mount plate
LED Indicators
- 2 Ethernet status
- 1 power/booting/firmware upgrade status
In the Box
- GR10-HW: Meraki Go Indoor Access Point
- Wall mount and screw kit
- Quick start guide
- PSU and ethernet cable
- Note: Meraki Go subscription required
802.11ac and 802.11n Capabilities
- 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
- SU-MIMO and MU-MIMO support
- Maximal ratio combining (MRC) & Beamforming
- 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
- Up to 256 QAM on both 2.4 GHz and 5 GHz bands
- Packet aggregation
Interfaces
- 1x 10/100/1000 BASE-T Ethernet (RJ45)
- 1x DC power connector (5.5 mm x 2.5 mm, center positive)
Environment
- Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5 to 95% non-condensing
Mobility
- PMK and OKC for fast Layer 2 roaming
Compliance
- RoHS
- EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
Warranty
- 1 year hardware warranty
Meraki Go Security Gateway - GX20
Performance
- Firewall Throughput - 250 Mbp/s
- Recommended for 50 clients of fewer
Network and Security Services
- Stateful firewall
- Port Forwarding
- DHCP services
- DNS based security powered by Cisco Umbrella (additional subscription required)
Power
- 50W (54V / 0.92 A) Power Supply Included
Physical Dimensions
- 6.83” x 4.41" x 1.0.4" (173.4mm x 112mm x 26.3mm), not including deskmount feet or mount plate
In the Box
- GX20-HW: Meraki Go Security Gateway
- Wall mount and screw kit
- Quick start guide
- PSU and ethernet cable
Interfaces
- WAN Interface: 1x 10/100/1000 BASE-T Ethernet (RJ45)
- LAN interfaces: 4x 10/100/1000 BASE-T Ethernet (RJ45)
- PoE: 1x 802.3af enabled port (15.5W)
Environment
- Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5 to 95% non-condensing
- Kensington lock hard point
LED Indicators
- 2 Ethernet status
- 1 power/booting/firmware upgrade status
Warranty
- 1 year hardware warranty

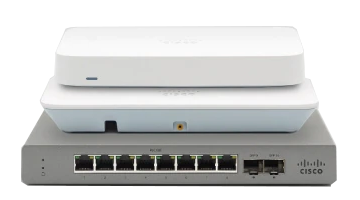

Meraki Go Complete Kit Back to Top
Indoor WiFi Access Point + Router/Firewall + Wired Switch
- Prioritize WiFi bandwidth, set limits & block unwanted websites
- Create a custom splash page for guest WiFi in seconds
- View guest and business insights
- Includes Firewall & Router combo w/ 3 additional LAN ports
- Includes 8-Port PoE Network Switch
- Port management and troubleshooting from anywhere
- Cloud managed with the Meraki Go mobile app
- All updates and tech support included
- Covers 500 – 1000 square feet / 50 – 100 square meters
Kit Description
Reliable and secure WiFi for business/guests needs, fast and easy setup, and enhanced features for small businesses. The Complete Kit includes the router/firewall that comes with automatic security updates, control over usage limits, and peace of mind.
With the included Meraki Go 8-port Switch, you get WiFi and wired connectivity and control over business devices, with visibility into switch port usage, remote troubleshooting tools, and bulk port configuration, all from the Meraki Go mobile app and web portal.
Specifications-
Meraki Go Indoor WiFi Access Point- GR10
Radios
- 2.4 GHz 802.11b/g/n client access radio
- 5 GHz 802.11a/n/ac client access radio
- Supported frequency bands (country-specific restrictions apply):
- 2.412-2.484 GHz
- 5.150-5.250 GHz (UNII-1)
- 5.250-5.350 GHZ (UNII-2)
- 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
- 5.725 -5.825 GHz (UNII-3)
Antenna
- Integrated omni-directional antennas (5.6 dBi gain at 2.4 GHz, 5.3 dBi gain at 5 GHz)
Power
- Power over Ethernet: 37 - 57 V (802.3af compatible)
- Alternative 12 V DC input
- Power consumption: 11W max (802.3af)
- Power over Ethernet injector sold separately
Physical Dimensions
- 7.95″ x 4.8″ x 1″ (202 mm x 123 mm x 26 mm), not including deskmount feet or mount plate
LED Indicators
- 2 Ethernet status
- 1 power/booting/firmware upgrade status
In the Box
- GR10-HW: Meraki Go Indoor Access Point
- Wall mount and screw kit
- Quick start guide
- PSU and ethernet cable
- Note: Meraki Go subscription required
802.11ac and 802.11n Capabilities
- 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
- SU-MIMO and MU-MIMO support
- Maximal ratio combining (MRC) & Beamforming
- 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
- Up to 256 QAM on both 2.4 GHz and 5 GHz bands
- Packet aggregation
Interfaces
- 1x 10/100/1000 BASE-T Ethernet (RJ45)
- 1x DC power connector (5.5 mm x 2.5 mm, center positive)
Environment
- Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5 to 95% non-condensing
Mobility
- PMK and OKC for fast Layer 2 roaming
Compliance
- RoHS
- EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
Warranty
- 1 year hardware warranty
Meraki Go Security Gateway - GX20
Performance
- Firewall Throughput - 250 Mbp/s
- Recommended for 50 clients of fewer
Network and Security Services
- Stateful firewall
- Port Forwarding
- DHCP services
- DNS based security powered by Cisco Umbrella (additional subscription required)
Power
- 50W (54V / 0.92 A) Power Supply Included
Physical Dimensions
- 6.83” x 4.41" x 1.0.4" (173.4mm x 112mm x 26.3mm), not including deskmount feet or mount plate
In the Box
- GX20-HW: Meraki Go Security Gateway
- Wall mount and screw kit
- Quick start guide
- PSU and ethernet cable
Interfaces
- WAN Interface: 1x 10/100/1000 BASE-T Ethernet (RJ45)
- LAN interfaces: 4x 10/100/1000 BASE-T Ethernet (RJ45)
- PoE: 1x 802.3af enabled port (15.5W)
Environment
- Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5 to 95% non-condensing
- Kensington lock hard point
LED Indicators
- 2 Ethernet status
- 1 power/booting/firmware upgrade status
Warranty
- 1 year hardware warranty
Meraki Go Network Switches - GS110-8/24/48
Ethernet Switching Capabilities
- 802.1p Quality of Service, 8 queues
- 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
- 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
- MAC forwarding entries: 16K on 24-port models, 32K on 48-port models
Interface
- GS110-8/P:
- 8 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
- 2 x 1G SFP uplink
- GS110-24/P:
- 24 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
- 2x 1G SFP uplink
- RJ45 Management port
- GS110-48/P:
- 48 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
- 2 x 1G SFP uplink
- RJ45 Management port
- 48 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
Power
- GS110-8/P
- Power input: 100 - 240 VAC, 47-63 Hz
- Power consumption: 5 - 161W
- External power supply
- GS110-24/48/P
- Power input: 100 - 240 VAC, 47-63 Hz
- Power consumption: 8 - 908W
Physical Dimensions
- GS110-8: 1.1 x 8.74 x 5.91” (2.8 x 22.2 x 15cm)
- GS110-8P: 1.1 x 8.74 x 5.91″ (2.8 x 22.2 x 15cm)
- GS110-24: 1.73 x 17.32 x 9.84″ (4.40 x 44 x 25cm)
- GS110-24P: 1.73 x 17.32 x 9.84″ (4.40 x 44 x 25cm)
- GS110-48: 1.73 x 17.32 x 9.84″ (4.40 x 44 x 25cm)
- GS110-48P: 1.73″ x 17.32″ x 13.39″ (4.40 x 44 x 34cm)
LED Indicators
- Ethernet status per port
- 1 power/booting/firmware upgrade status
In the Box
- GS110-HW: Meraki Go Network Switch
- Mount and screw kit
- Quick start guide
- Power Cable / Power Supply
Switching Capacity
- GS110-8/P:
- 20 Gbp/s
- GS110-24/P:
- 56 Gbp/s
- GS110-48/P:
- 104 Gbp/s
Mounting
- GS110-8:
- Wall or utility board mountable with included mount hardware
- Desktop-mountable with included feet
- Kensington lock slot included
- GS110-24/48:
- 1U Rack-mountable with included rack mount hardware
- 2-post front mounting options available
- Desktop-mountable with included feet
Available PoE / PoE+ Power
- GS110-8P
- 67W
- GS110-24P
- 195W
- GS110-48P
- 370W
Environment
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Humidity: 5 to 95% non-condensing
- GS110-8/8p, GS110-24, GS110-48 feature fanless operation
Compliance
- RoHS
Warranty
- 1 year hardware warranty
